Rumah > Produk > kabinet kering elektronik > Humidity Control Electronic Dry Storage Cabinet , Liquid Crystal Glass Board

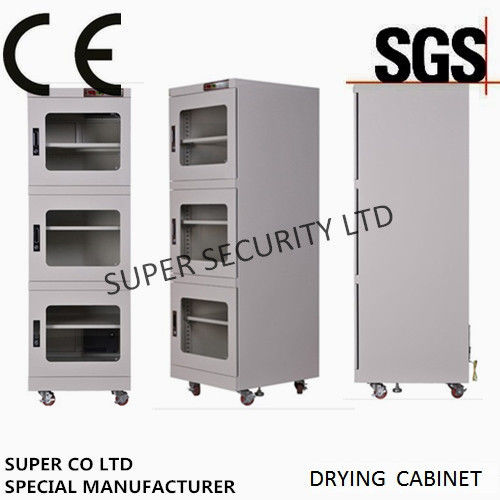

Humidity Control Electronic Dry Storage Cabinet , Liquid Crystal Glass Board

Rincian Produk

Place of Origin: CHINA

Nama merek: SOPERSL

Sertifikasi: ISO9001

Model Number: DC87185L

Ketentuan Pembayaran & Pengiriman

Minimum Order Quantity: 5

Harga: Negotiation

Packaging Details: Standard Paper Box on the Plywood Pallet

Delivery Time: 10-15 Days for LCL, 25-30 days for FCL

Payment Terms: T/T or L/C at sight

Supply Ability: 1500 per month

Dapatkan Harga Terbaik
Menyorot:

electronic dry cabinet

,

digital dry cabinet

Function:
Ultro-low humidity
Material:
metal
Color:
ESD Black, or white
Function:
Ultro-low humidity
Material:
metal
Color:
ESD Black, or white
Humidity Control Electronic Dry Storage Cabinet , Liquid Crystal Glass Board

Humidity Control Electronic Dry Storage Cabinet , Liquid Crystal Glass Board





Applications:

Its typical applications include the prevention and protection against all types of oxidation (rust), the prevention of the growth of fungus on optics, the dry preservation of lab materials and samples as well as the protection of MSDs (moisture sensitive devices) as per IPC/JEDEC J-STD-033 within the electronics industry.
Suitable for storing: Semiconductors, IC packages, PCBs, Silicon Wafers, Ceramics , Liquid Crystal Glass (LCG) Board, Optical Fiber, CCD etc, Crystal Resonator.




Specifications:


Ultra Low Humidity Type-Single Door Type
Cabinets suitable for processing and storage of electronic components.



RH Range:0-5% For  Industrial use



Model :DC87185L

Outside:W598*D710*H1910mm

Inside:W596*D682*H1723mm

Sheet:5pcs, Each with 100kg loading

Power:85V-265V, 50HZ/60HZ

Weight: 85kg Capacity:718L

LED Display:yes(Honeywell)



Ultra Low Humidity Dehumidifier Cabinet

ELECTRONIC COMPENENT USE

Features:

1)Humudity adjustable, energy saving design digital LED-Honeywell display and control, all the setting can be justified at the touch of the UP and DOWN bottom.

2)1.0mm thickness steel body, rustproof paint, 3.2mm toughened glass.

3)Moisture absorbs continuously with sustention for 24hours

4)Equipment with high performance, reliable desiccators and himidity controller located at the lower deep inside.

5)Zinc alloy lock with plus pressure capability. Anti-ESD powder coating, dark green look.Surface powder coating with RoHS certification.On the base truckle with brake .

6)Slip layer board make the inter space adjustable.

7)Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise.




Remarks:


All models can be chosed stainless material.
With casters on the base
Can choose Anti-ESD dark green color.
Customized size accepted

Digital Temp Display &  RH Control
Humidity Control Electronic Dry Storage Cabinet , Liquid Crystal Glass Board 0                    Power supply direct connection
                    No need of battery

Digital LED-Honeywell display and control, with UP and DOWN bottom.
Competitive Advantage:

Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise

Dual digital hygrometer-Ecology Design

Noisy free, vibration free, low humidity keeping at ambient temperature and long-term consecutive driving.

Energy saving design: maintenance cost is only a very little electricity. It comes with humidity controller.

No expendable supplies (Exchange free desiccant), very economical.

No use of batteries for hygrometer.

Long lasting and highly reliable.

With detachable shelves, wide space is available to use.

With high technology( photocatalyst, IC timer, shape-memory alloy and dual digital hygrometer)



RH: 01-5%
Model Door type Overall Size H×W×D(mm) Interior size H×W×D(mm) Sheet

Capacity

(L)

Voltage

Average Power

(W)

N.W.
(KG)
DC8985L 1,manual 688×488×400 598×446×372 1 98 85V-265V 18 20
50Hz/60Hz
DC81605L 1,manual 1313×598×400 1151×596×372 3 160 85V-265V 20 31
50Hz/60Hz
DC82405L 1,manual 1310×598×400 848×596×372 3 240 85V-265V 20 43
50Hz/60Hz
DC85405L 1,manual 1310×598×710 848×596×682 3 540 85V-265V 60 70
50Hz/60Hz
DC87185L 1,manual 1910×598×710 1723×596×682 5 718 85V-265V 60 85
50HZ/60HZ
DC83205L 2,manual 1010×900×450 848×898×422 3 320 85V-265V 40 54
50HZ/60HZ
DC84355L 2,manual 1010×900×600 848×898×572 3 435 85V-265V 40 60
50HZ/60HZ
DC88705L 2,manual 1895×900×600 1700×898×572 3 870 85V-265V 80 106
50HZ/60HZ
DC814365L-6 6,manual 1910×1200×710 1723×1198×682 5 1436 85V-265V 120 147
50HZ/60HZ
DC814365L-4 4,manual 1910×1200×710 1723×1198×682 5 1436 85V-265V 120 147
50HZ/60HZ
